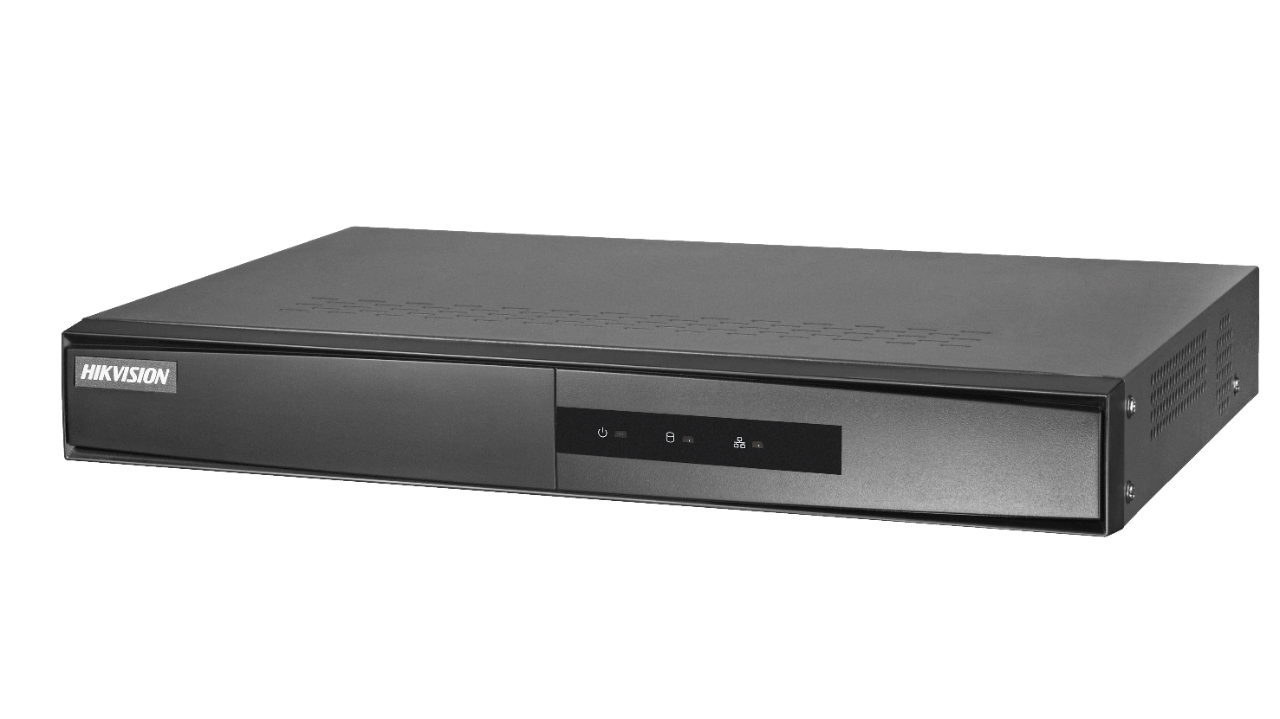

4-ch Mini 1U NVR
· Up to 4 channel IP cameras can be connected
· Supports decoding H.265+/H.265/H.264+/H.264 video formats
· Up to 6 MP high-definition live view, storage and playback
· Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected
· Up to 4-ch @ 1080p decoding capacity
· 1 HDD for continuous video recording
· Compatible with third-party network cameras
· Metal case for professional industry applications.
More Details
Decoding
Live View / Playback Resolution6MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding FormatH.265+/H.265/ H.264+/H.264
Synchronous Playback4-ch
Capability1-ch @ 6 MP / 4-ch @ 1080p
Network
Incoming Bandwidth40 Mbps
Outgoing Bandwidth60 Mbps
Hard Disk
SATA1 SATA interface
CapacityUp to 6TB capacity for each disk
External Interface
Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
USB Interface2 × USB 2.0
General
Power≤ 18W
Power Supply12 VDC
Working Temperature-10 to +55º C (+14 to +131º F)
Working Humidity10 to 90 %
Chassis1U chassis
Dimensions(W × D × H)260 × 225 × 48 mm (10.2" × 8.9" × 1.9")
Consumption(Without Hard Disk)≤ 10 W
Weight(Without Hard Disk)≤ 1 kg (2.2 lb)
Video Input
IP Video Input4-ch ,Up to 4 MP resolution
Video Output
Recording Resolution4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI/VGA Output Resolution1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network Management
Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
